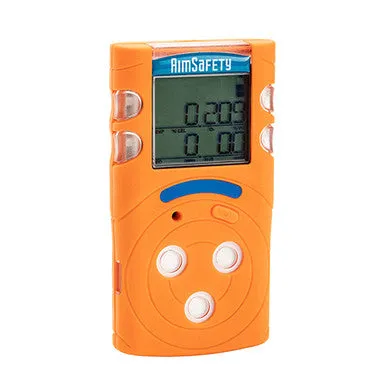

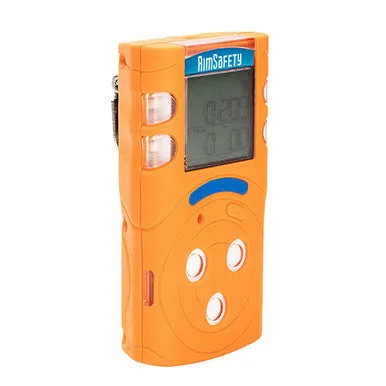

The AimSafety PM400-P2G is a 2-gas detector that features a Catalytic Bead (Pellistor) LEL sensor. This Multi-Gas Monitor brings enhanced convenience and flexibility to gas detection in hazardous environments. The ergonomic PM400 diffusion gas monitor simultaneously detects up to 2 gases, including oxygen (O2) and combustibles (LEL). AimSafety’s PM400 is easy to use and delivers a continuous digital display of gas concentrations , along with flashing, audible and vibrating alarms once pre-set levels are reached. Full specs are available on the Data Sheet.
The Catalytic Bead LEL sensor is significant in that it will detect Hydrogen (H2) and Acetylene, while the alternative NDIR (infra red) sensor will not. The disadvantages of Catalytic Bead sensors are that they can be poisoned, need oxygen to operate, and use more power than NDIR LEL sensors. This results in 24 hours of run time, vs. 60 days for the NDIR equipped instrument.
Applications: Confined space entry, oil & gas, heavy metal & steel, chemical plants, pulp & paper, municipalities, food & beverage, contractor/construction, first responder
Key Features:
- Catalytic bead (Pellistor) Sensor
- Oxygen Sensor
- Easy-to-read LCD display
- Single button operation
- Rugged, high visual housing
- IP67 dust tight & water resistant
- 24 hours continuous
- UL & CSA certified
Manual:
Specification Sheet:
Quick Start Guide:
Product Number:
70-2900-0513-1 (PM400-P2G)
